Methods of Purification of Organic Compounds

Sublimation

What is Sublimation?

Sublimation is the process in which a solid directly changes into vapour without becoming liquid.

Example:

  • Ammonium chloride
  • Iodine
  • Camphor
  • Naphthalene

Why does it happen?

Some solids have:

  • Weak intermolecular forces
  • High vapour pressure even at lower temperatures

So, when heated, they directly escape into vapour form.


Sublimation as a Separation Technique

It is used to purify substances:

Sublimable substance → turns into vapour
Non-sublimable impurities → remain as solid

Then vapour is cooled → forms pure solid again.


Simple Setup

  1. Heat the mixture
  2. Sublimable substance vaporizes
  3. Vapour condenses on a cold surface
  4. Pure solid is collected

Example Use

Separating:

  • Ammonium chloride + sand

Ammonium chloride sublimates, sand stays behind.

Crystallisation

What is Crystallisation?

A purification technique used to purify solid organic compounds based on difference in solubility.


Principle

  • Substance is less soluble at low temperature
  • Substance is more soluble at high temperature

So:

  • Dissolve at high temp
  • Cool → pure crystals form

Steps

  1. Dissolve impure solid in hot solvent
  2. Make a saturated solution
  3. Filter (if needed, remove insoluble impurities)
  4. Cool the solution
  5. Pure crystals separate out
  6. Filter and dry crystals

Important Terms

  • Mother liquor → remaining liquid after crystallisation
  • Activated charcoal → removes colored impurities

🔹 Examples

Example 1: Benzoic Acid purification

  • Impure benzoic acid dissolved in hot water
  • On cooling → pure crystals of benzoic acid form

When repeated crystallisation is needed?

When

Simple Distillation (large boiling point difference)

When used:

  • Difference in b.p. > 25–30°C
  • Or liquid + non-volatile impurity

Examples:

Example 1:

  • Water + salt
    Water distils, salt remains

Example 2:

  • Chloroform (334 K) + Aniline (457 K)
    Easily separated

Example 3:

  • Alcohol + sugar solution
    Alcohol vaporises, sugar stays

Example 4:

  • Acetone + water
    Acetone (low b.p.) comes first

Fractional Distillation (close boiling points)

When used:

  • Difference in b.p. < 25°C

Examples:

Example 1:

  • Ethanol (78°C) + Water (100°C)
    Cannot separate by simple distillation

Example 2:

  • Benzene (80°C) + Toluene (110°C)
    Need fractionating column

Example 3:

  • Hexane + Heptane
    Very close boiling points

Example 4 (Industrial):

  • Crude oil refining
    Petrol, diesel, kerosene separated

3. Steam Distillation (heat-sensitive substances)

When used:

  • Substance:
    • Immiscible with water
    • Volatile with steam
    • Decomposes at high temperature

Examples:

Example 1:

  • Extraction of essential oils
    From plants (e.g., clove oil, eucalyptus oil)

Example 2:

  • Aniline purification
    High b.p. but steam volatile

Example 3:

  • Nitrobenzene
    Separated using steam

Example 4:

  • Rose oil extraction (attar)
    Used in perfumes


Quick Comparison (Very Important)

MethodConditionExample
Simple DistillationLarge b.p. differenceWater + salt
Fractional DistillationSmall b.p. differenceEthanol + water
Steam DistillationHeat-sensitive, steam volatileEssential oils


Distillation Under Reduced Pressure (Vacuum Distillation)

Statement:

Distillation under reduced pressure → Glycerol + spent-lye


Why this method is used?

Some liquids:

  • Have very high boiling points
  • Decompose before boiling

Example: Glycerol


Principle

When pressure is reduced:
Boiling point decreases

So, substance can distil at lower temperature without decomposition


Application in given case

Mixture:

  • Glycerol (high b.p., heat sensitive)
  • Spent-lye (impurities)

What happens?

  • Pressure ↓
  • Glycerol boils at lower temp
  • Vapours collected → pure glycerol
  • Impurities remain

Why not simple distillation?

❌ Glycerol decomposes at high temperature
✔ So vacuum distillation is required


🔹 More Examples

Example 1:

  • Glycerol purification (most common)

Example 2:

  • High boiling oils
  • Example 3:
  • Fatty acids

Example 4:

  • Petroleum residues

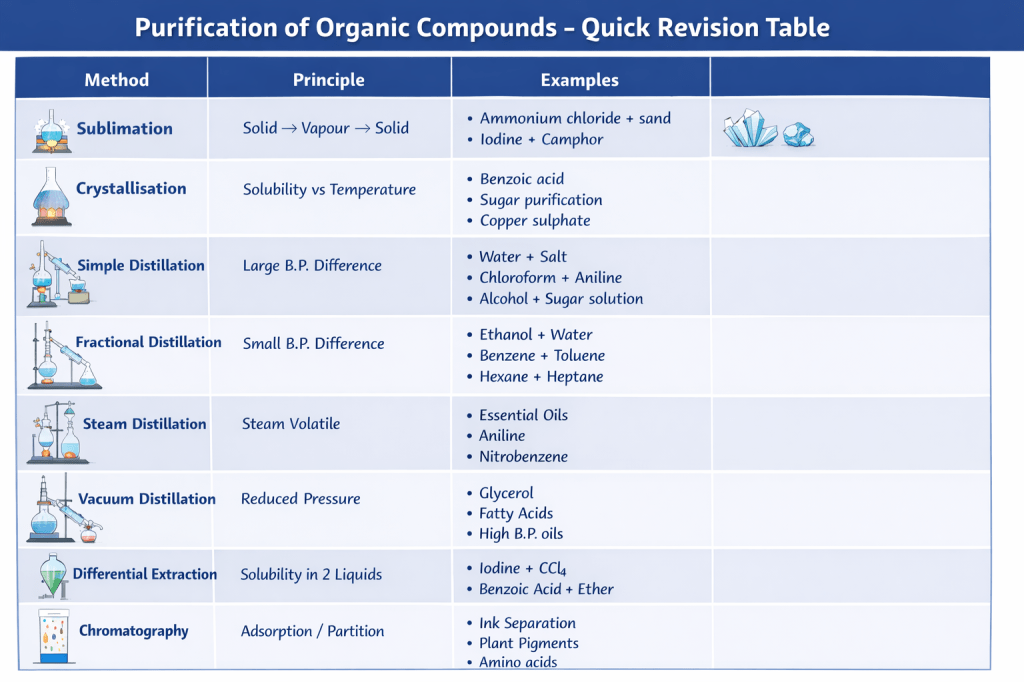

Quick Summary

MethodUsed for
Simple distillationLow b.p. liquids
Fractional distillationClose b.p. liquids
Steam distillationHeat-sensitive, steam volatile
Reduced pressure distillationHigh b.p., decomposing liquids

Differential Extraction

When an organic compound is present in an aqueous medium, it is separated by shaking it with an organic solvent in which it is more soluble than in water. The organic solvent and aqueous solution should be immiscible so that they form two distinct layers which can be separated using a separating funnel. The organic solvent is later removed by distillation or evaporation to obtain the compound.

Concept: Differential (Liquid–Liquid) Extraction

Principle

Based on difference in solubility of a compound in two immiscible liquids

Usually:

  • Water (aqueous layer)
  • Organic solvent (like ether, benzene)

Key Conditions

✔ Two liquids must be immiscible
✔ Compound should be more soluble in organic solvent

Process (Separating Funnel)

  1. Take mixture in separating funnel
  2. Add organic solvent
  3. Shake well
  4. Allow layers to separate

Two layers form:

  • Upper layer (usually organic solvent)
  • Lower layer (water)
  1. Separate layers
  2. Evaporate solvent → get pure compound

Example

Example 1:

  • Iodine in water + carbon tetrachloride (CCl₄)
    → Iodine moves to organic layer

Example 2:

  • Benzoic acid from water using ether

Continuous Extraction

When used?

  • When compound is slightly soluble in solvent

Why?

  • Single extraction inefficient
  • Repeated extraction increases yield

Same solvent reused again and again


Advantages

  • Efficient separation
  • Better recovery of compound
  • Widely used in organic chemistry labs

Chromatography

What is Chromatography?

A separation technique where components of a mixture are separated based on their different affinities between two phases.


Principle

Based on distribution of components between two phases:

  1. Stationary phase → fixed (solid or liquid)
  2. Mobile phase → moving (liquid or gas)

Different substances move at different speeds → separation occurs


Types of Chromatography

1. Paper Chromatography

  • Stationary phase → paper
  • Mobile phase → solvent

Used for:

  • Ink separation
  • Plant pigments

2. Thin Layer Chromatography (TLC)

  • Stationary phase → silica gel layer
  • Faster and more accurate than paper chromatography

3. Column Chromatography

  • Column filled with adsorbent (silica/alumina)
  • Used for larger scale separation

4. Gas Chromatography (GC)

  • Mobile phase → gas
  • Used for volatile compounds

How Separation Happens?

  • Component with more attraction to stationary phase → moves slowly
  • Component with more attraction to mobile phase → moves faster

Example

Ink Separation

Black ink → separates into different colors on paper


Plant Pigments

Chlorophyll, carotene separated using chromatography


Important Term: Rf Value

Rf=Distance travelled by substanceDistance travelled by solventRf = \frac{\text{Distance travelled by substance}}{\text{Distance travelled by solvent}}

Uses

✔ Separation of mixtures
✔ Purification
✔ Checking purity
✔ Drug testing
✔ Food analysis

Stephen Reaction (Stephen Aldehyde Synthesis)

tephen Reaction (Stephen Aldehyde Synthesis) – Mechanism (JEE/NEET Concept)

Definition:
Conversion of nitriles (R–C≡N) into aldehydes (R–CHO) using SnCl₂/HCl, followed by hydrolysis.


Overall Reaction

RCNHClSnCl2RCH=NHHClH2ORCHOR-C \equiv N \xrightarrow[\text{HCl}]{\text{SnCl}_2} R-CH=NH \cdot HCl \xrightarrow{\text{H}_2O} R-CHO


Stepwise Mechanism

Step 1: Formation of Iminium Salt (Reduction Step)

  • SnCl₂ (mild reducing agent) donates electrons.
  • Nitrile gets partially reduced.
  • Formation of iminium chloride salt:

RCNSnCl2/HClRCH=NHHClR-C \equiv N \xrightarrow{\text{SnCl}_2/HCl} R-CH=NH \cdot HCl

Key point:

  • Triple bond (C≡N) → double bond (C=NH)
  • Controlled reduction (not all the way to amine)

Step 2: Hydrolysis of Iminium Salt

  • Iminium salt reacts with water.
  • Produces aldehyde + ammonium salt

RCH=NHHCl+H2ORCHO+NH4ClR-CH=NH \cdot HCl + H_2O \rightarrow R-CHO + NH_4ClR−CH=NH⋅HCl+H2​O→R−CHO+NH4​Cl


Important Points (Exam-Oriented)

  • Works best for alkyl nitriles (aryl nitriles give poor yield).
  • Stops at aldehyde stage (unlike strong reduction → amine).
  • SnCl₂/HCl = selective mild reducing system
  • Intermediate = iminium salt (not imine directly)

Shortcut Trick (Memory Tip)

“Nitrile + Mild Reduction = Aldehyde”
Think: Stephen = Stops Early (Aldehyde, not amine)


Example

CH3CNSnCl2/HClCH3CHOCH_3CN \xrightarrow{\text{SnCl}_2/HCl} CH_3CHO

Etard reaction mechanism

Oxidation of a benzylic methyl group (–CH₃ attached to benzene) to an aldehyde (–CHO) using
Chromyl chloride in a non-aqueous solvent (like CCl₄).

Mechanism (Stepwise)

Formation of Etard Complex

  • Chromyl chloride attacks benzylic hydrogen
  • Forms a brown complex (Etard complex)

ArCH3ArCH(OCrOCl2)2Ar-CH_3 \rightarrow Ar-CH(OCrOCl_2)_2


Hydrolysis of Complex

  • On hydrolysis (H₂O), the complex breaks
  • Gives aldehyde

ArCH(OCrOCl2)2H2OArCHOAr-CH(OCrOCl_2)_2 \xrightarrow{H_2O} Ar-CHO

The unsaturated ether on acidic hydrolysis produces carbonyl compounds

Key Idea

Unsaturated ethers (enol ethers) on acidic hydrolysis give carbonyl compounds (aldehydes/ketones).


Why does this happen?

Unsaturated ethers are basically enol forms of carbonyl compounds.

General structure:RCH=CHORR – CH = CH – OR’

Under acidic conditions:

  1. Protonation of ether oxygen
  2. Formation of unstable enol
  3. Tautomerism (enol → carbonyl)

🔹 Important Reaction

Example:CH2=CHOCH3H+,H2OCH3CHO+CH3OHCH_2 = CH – OCH_3 \xrightarrow{H^+, H_2O} CH_3CHO + CH_3OH

Product:

  • Aldehyde/Ketone (carbonyl compound)
  • Alcohol

🔹 Mechanism Shortcut (Exam Trick ⚡)

  • Break C–O bond
  • Form enol
  • Enol → carbonyl (keto form)

One-line Concept (for revision)

Unsaturated ether + acidic hydrolysis → enol → carbonyl compound


Important for Exams

  • Only vinyl / allyl ethers show this behavior
  • Due to keto-enol tautomerism
  • Very common in mechanism-based questions

Cannizzaro Reaction (JEE/NEET Concepts)

Cannizzaro Reaction (JEE/NEET Concepts)

Definition:
Cannizzaro reaction is a disproportionation reaction in which an aldehyde without α-hydrogen undergoes self oxidation–reduction in the presence of strong base (NaOH/KOH).


General Reaction

2RCHO+OHRCH2OH+RCOO2RCHO + OH^- \rightarrow RCH_2OH + RCOO^-

(One molecule is reduced → alcohol, other oxidized → carboxylate salt)


  • Key Conditions (VERY IMPORTANT for JEE)
  • Aldehyde must have NO α-H (alpha hydrogen)
  • Strong base: conc. NaOH or KOH
  • Usually occurs with:
    • Formaldehyde (HCHO)
    • Benzaldehyde (C₆H₅CHO)

Example

2C6H5CHO+NaOHC6H5CH2OH+C6H5COONa2C_6H_5CHO + NaOH \rightarrow C_6H_5CH_2OH + C_6H_5COONa

(Benzaldehyde → benzyl alcohol + sodium benzoate)

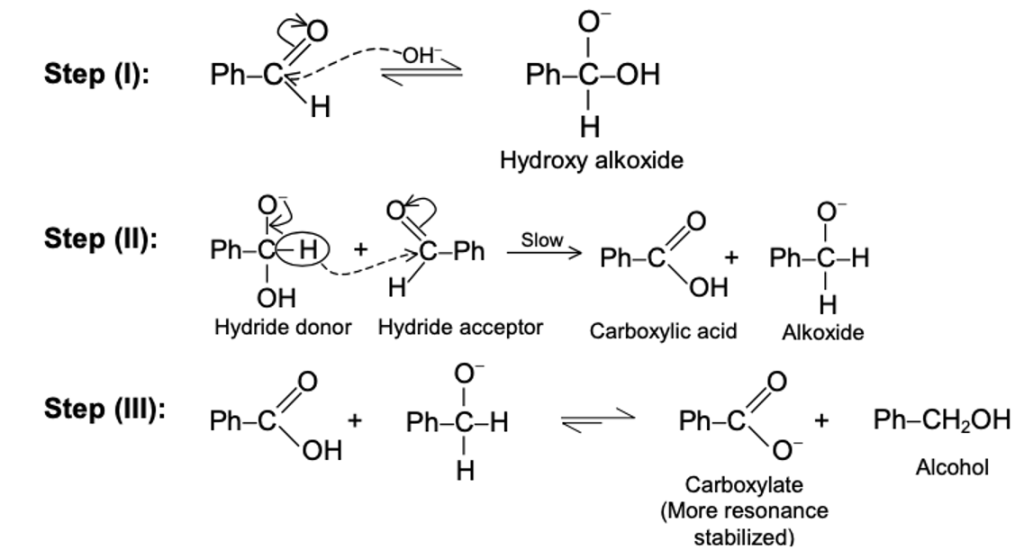

Mechanism (Conceptual Steps)

  1. Nucleophilic attack of OH⁻ on aldehyde → alkoxide intermediate
  2. Hydride transfer (H⁻ shift) from one molecule to another
  3. Formation of:
    • Alcohol (reduction)
    • Carboxylate ion (oxidation)

Types of Cannizzaro Reaction

  1. Self Cannizzaro
    Same aldehyde reacts
    Example: benzaldehyde

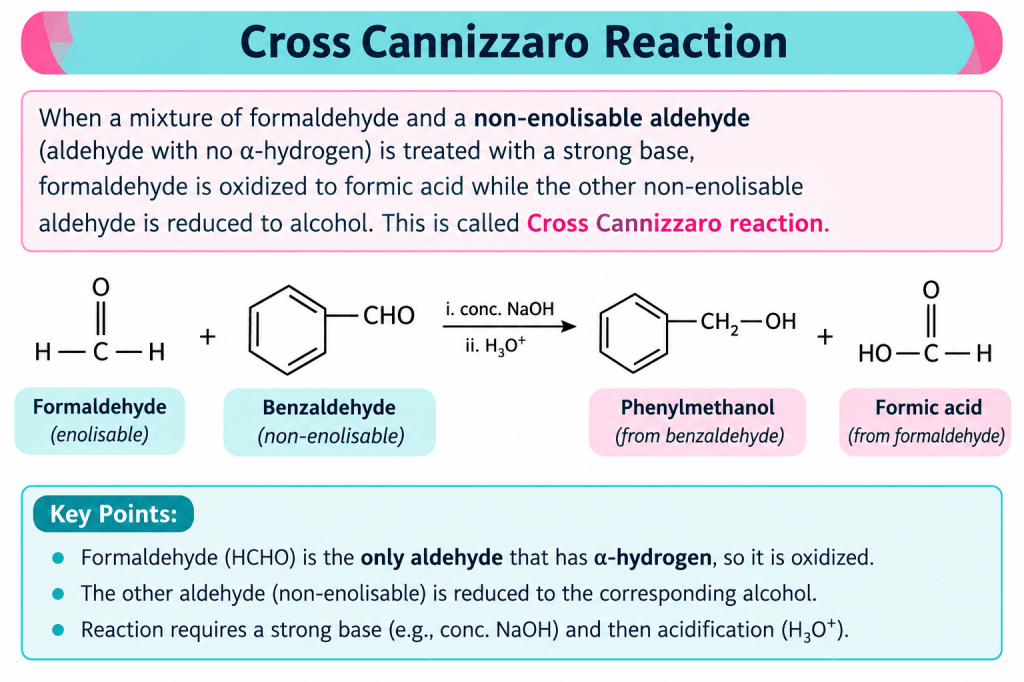

  2. Cross Cannizzaro (Important!)
    Two different aldehydes
    • One should be formaldehyde (HCHO) (best reducing agent)

HCHO+C6H5CHO+NaOHC6H5CH2OH+HCOONaHCHO + C_6H_5CHO + NaOH \rightarrow C_6H_5CH_2OH + HCOONa

(Formaldehyde gets oxidized, other gets reduced)


Epoxide + Grignard Reagent (Complete JEE/NEET Concept)

This is a high-weightage concept from alcohols + organometallics.


General Reaction:

Epoxide+RMgXdry etheralkoxideH3O+alcohol\text{Epoxide} + RMgX \xrightarrow{\text{dry ether}} \text{alkoxide} \xrightarrow{H_3O^+} \text{alcohol}


Core Mechanism:

  • Grignard reagent (RMgX) behaves like R⁻ (strong nucleophile)
  • Attacks epoxide → ring opening (SN2 type)
  • Final step: acidic hydrolysis → alcohol

Golden Rules (VERY IMPORTANT):

Attack Position:

✔ Always attacks LESS substituted carbon (SN2 mechanism)


Product Type:

Alcohol is formed at the carbon where O⁻ was present
✔ Nature depends on epoxide structure:

  • Ethylene oxide → Primary alcohol
  • Substituted epoxide → Secondary / tertiary alcohol

Chain Extension Trick:

✔ Adds +2 carbons (only with ethylene oxide clearly)
✔ With other epoxides → chain increases but depends on structure


Important Cases:

1. Ethylene Oxide:

RMgXRCH2CH2OHRMgX \rightarrow R-CH_2-CH_2-OH

Always primary alcohol
+2 carbon extension (fixed)


2. Unsymmetrical Epoxide (e.g., Propylene oxide):

RMgXRCH2CH(R)OHRMgX \rightarrow R-CH_2-CH(R’)-OH

Attack at less hindered carbon
Usually secondary alcohol


  • JEE/NEET Quick Summary:

✔ RMgX = nucleophile (R⁻)
✔ Epoxide opening = SN2 reaction
✔ Attack = less substituted carbon
✔ Product = alcohol after H₃O⁺


Compounds can be used as antifreeze in automobile radiators?

Ethylene glycol (ethane-1,2-diol)


  • Ethylene glycol has two –OH groups, so it forms strong hydrogen bonding.
  • It lowers the freezing point of water (freezing point depression).
  • It also raises the boiling point, preventing overheating.

✔ Used as antifreeze because it prevents water from freezing in cold conditions.


Other than ethylene glycol, there are a few compounds used as antifreeze:


Other Antifreeze Compounds

1. Propylene glycol (propane-1,2-diol)

  • Less toxic than ethylene glycol
  • Used in safer antifreeze formulations (food-grade systems)

2. Glycerol (glycerine, propane-1,2,3-triol)

  • Has three –OH groups → strong H-bonding
  • Good freezing point depression
  • Used in older or special applications

3. Methanol / Ethanol

  • Also lower freezing point
  • But ❌ not preferred because:
    • Highly volatile
    • Flammable
    • Evaporate easily
